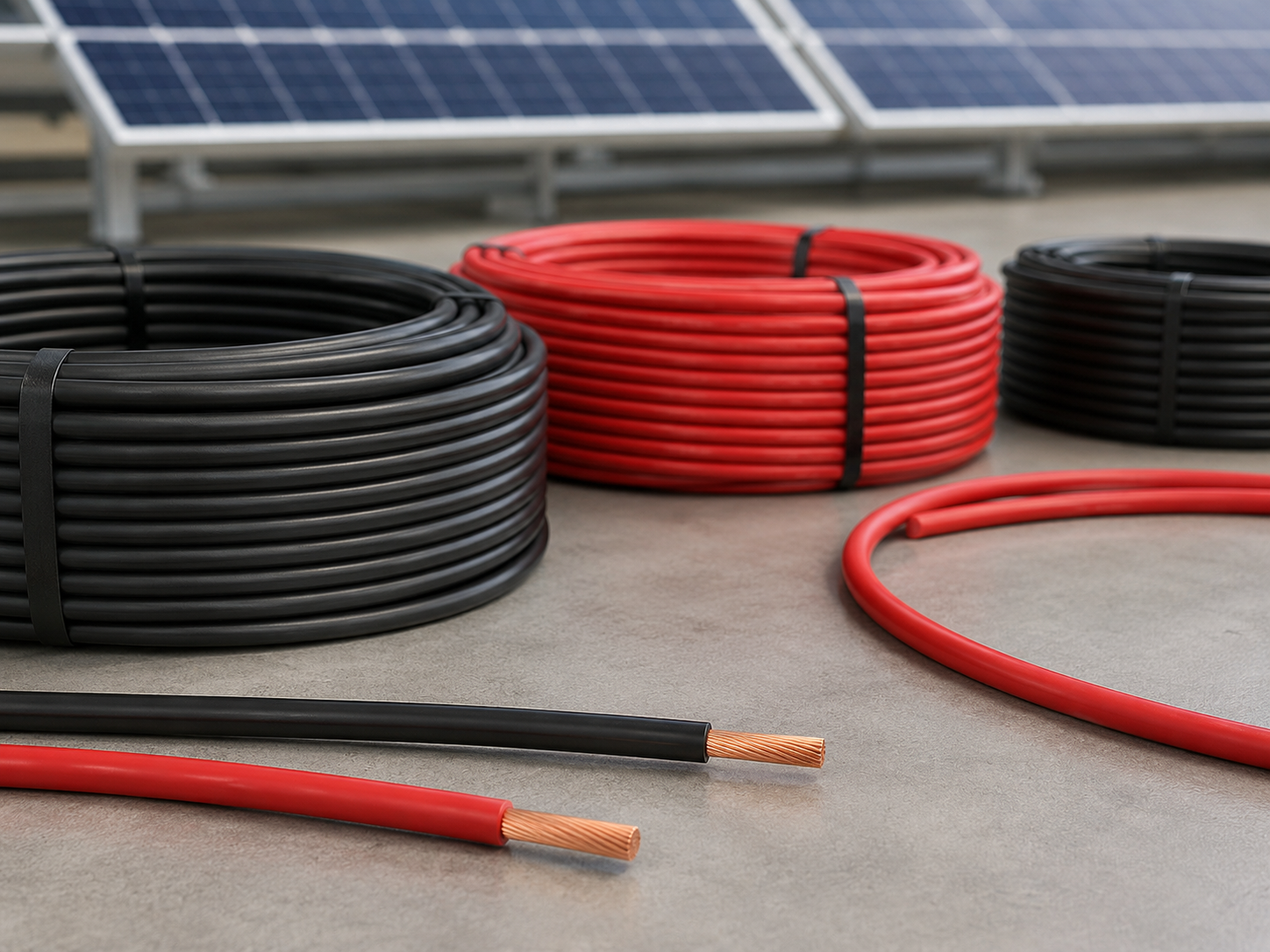

Australian Standard Solar Cable
Australian Standard Solar Cable to AS/NZS 5000
0.6/1 kV rated voltage
0.5–240 mm² configurations
15–35 day production schedule
Jinyou Cable manufactures Australian Standard Solar Cable for renewable-energy projects whose approved cable schedule calls for an AS/NZS 5000 construction. The label says solar cable, but the project circuit may require a different cable standard; for non-underground PV-array d.c. circuits governed by AS/NZS 5033, send the circuit location first for an H1Z2Z2-K cable and IEC 62930 construction check.
Start with the governing circuit:
- AS/NZS 5000 cable specified for the circuit
- PV-array d.c. cable requiring an IEC 62930 check
- OEM construction, length, packing and document requirements
For a configuration-level review, provide the circuit location, cable size, route length, quantity and destination.
Specifications
Product standard
AS/NZS 5000
Rated voltage
0.6/1 kV
Cross-sections
0.5–240 mm²
Conductor
Bare copper or tinned copper
Temperature range
-40°C to +90°C
Production schedule
15–35 days
Project Requirements

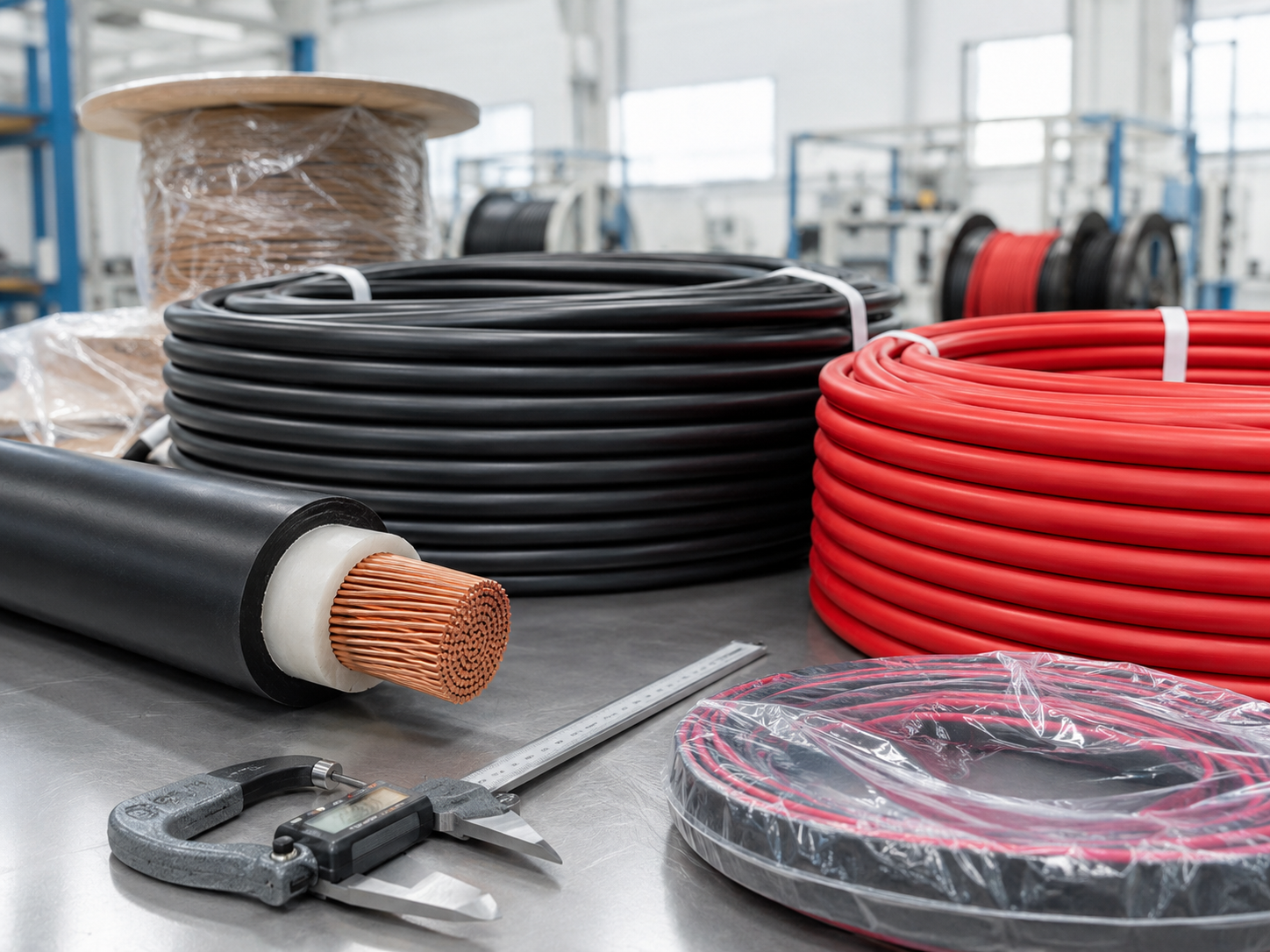

Australian Standard Cable for Project-Specific Circuits
We construct the ordered cable to the governing project specification, not just a product name in a catalogue. Unlike a catalogue-only selection, our order review confirms against the circuit location and separates the conductor, insulation, sheath, electrical rating and packing before manufacturing.
Standard-fit review
We manufacture this cable to AS/NZS 5000. AS/NZS 5000 and IEC 62930 are not interchangeable, so the right call is recorded with the circuit location and exact construction.
OEM configuration
We provide custom OEM cable for renewable-energy equipment and project-specific installation environments. Size, conductor option, compound, marking and packing are settled in the quotation.
Export order preparation
Our Shanghai team prepares cable orders for international project schedules, packing requirements and destination documentation. Jinyou Cable has supplied customers in over 40 countries since its establishment in 2006.
- Renewable-energy power distribution and equipment interconnection
- Protected balance-of-system circuits outside the PV-array d.c. string route
- Solar, energy-storage and electric-vehicle electrical assemblies
- Single-market or multi-market OEM cable schedules
- Before installing cable for a solar panel project, define the DC cable route and specify which standard the electrical installations must comply with.
- PVC and XLPE are insulation compound families, not interchangeable circuit approvals.
- The review helps ensure industrial buyers order the cable construction named in the project schedule.
Jinyou offers cables and customized electrical supplies for project needs in the renewable-energy industry.
Specifications

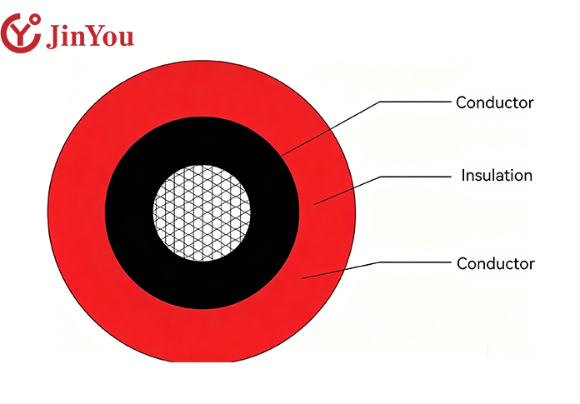

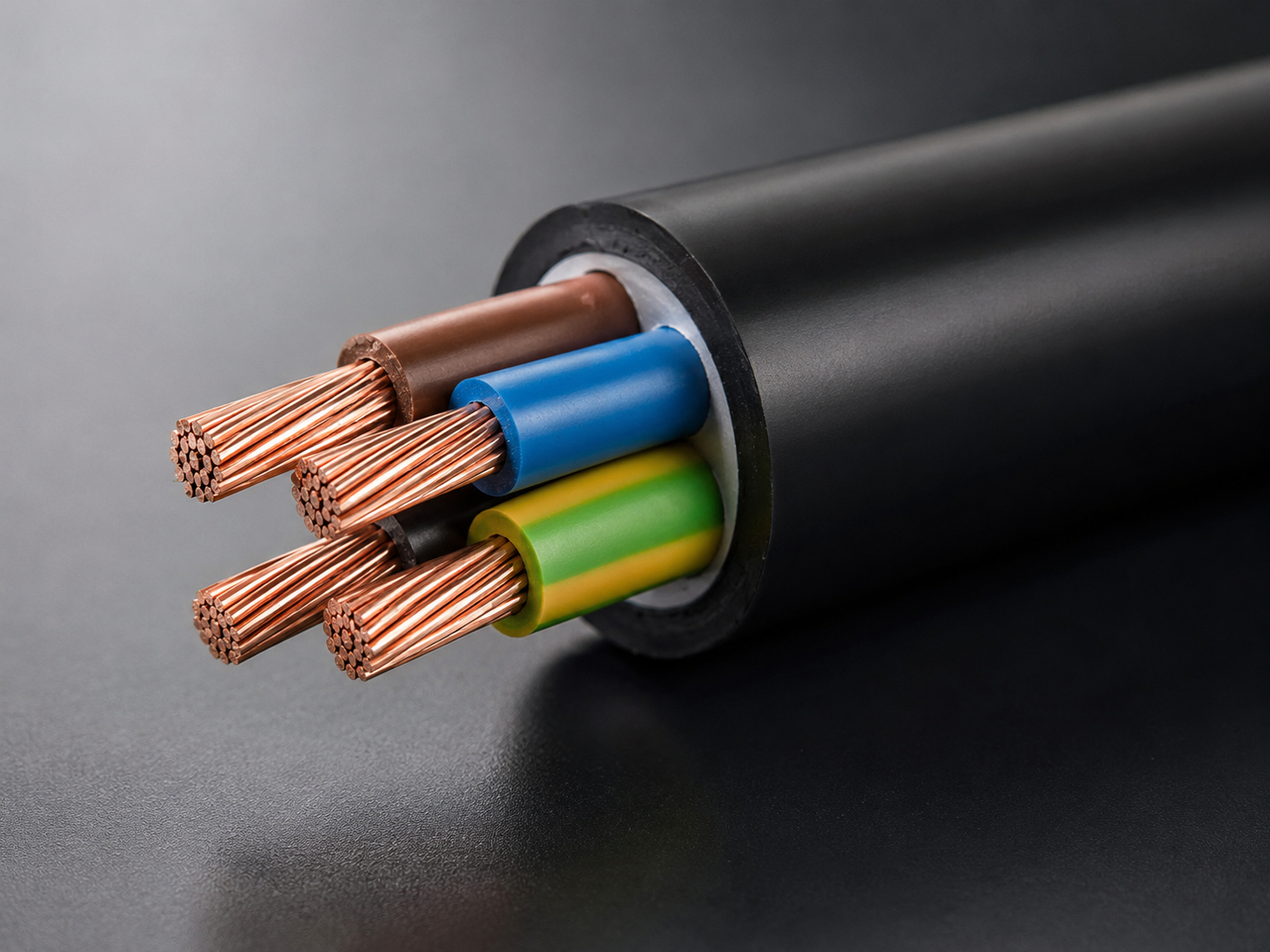

Cable Construction and Material Options
Jinyou combines copper conductor options with PVC insulation and sheath compounds in its published Australian Standard Cable construction. Matching every layer to the ordered 0.5–240 mm² configuration prevents a material or termination mismatch from carrying into production.
Request a Material Configuration
-
1
Copper conductor
We offer bare copper or tinned copper conductors. The published conductor reference is AS/NZS 1125 Cl.5; conductor construction is confirmed per ordered size.
-
2
V-90 insulation
The insulation is V-90 PVC compound. Its colour and core arrangement are fixed with the approved cable schedule.
-
3
5V-90 outer sheath
The sheath is 5V-90 PVC compound. The standard sheath colour is black.
-
4
Cross-section range
Available nominal cross-sections span 0.5–240 mm²; the selected construction is fixed in the order specification. The range is treated as available configurations, not as one regulatory or certificate family.
Process Control
Sheath, Colour and Order Identification
Jinyou controls outer construction and identification as order fields, so procurement and site teams receive the same specification. A mismatch between the published 5V-90 sheath record and the 0.6/1 kV cable schedule can delay site acceptance.
| Order field | Published option | How it is controlled |
|---|---|---|
| Insulation | V-90 PVC compound | Matched to the approved core construction |
| Outer sheath | 5V-90 PVC compound | Fixed in the order specification |
| Standard sheath colour | Black | Listed on the cable schedule and packing record |
| OEM identification | Project-specific requirement | Wording and format confirmed before production |
Identification or colour outside the published construction is quoted only after the requested specification has been reviewed.

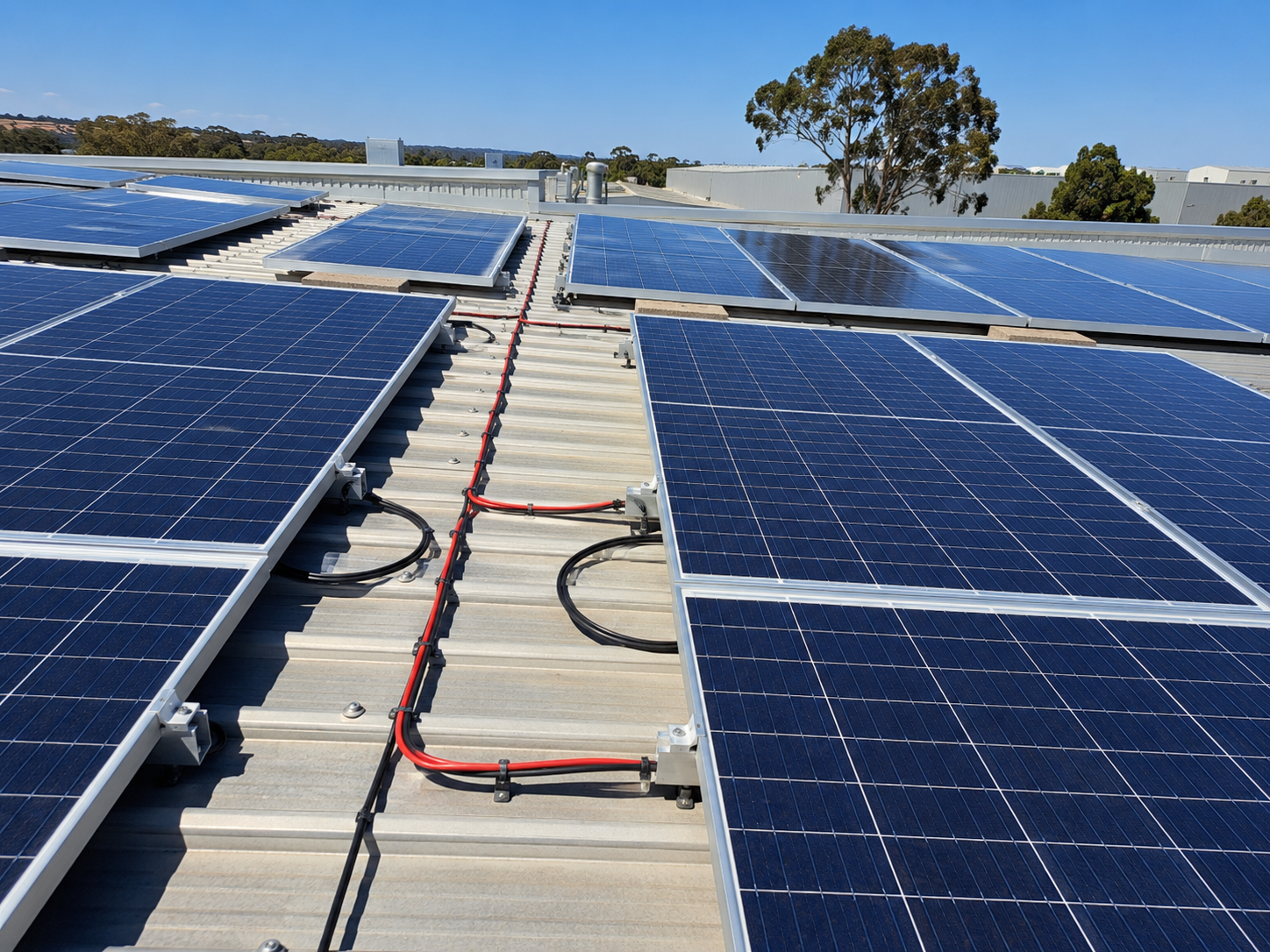

Australian Standard Cable Specifications
Use this table to qualify the published range, then send the exact bill of materials for configuration confirmation. A long route can turn a small cross-section into voltage-drop and energy-loss risk, while oversizing can add unnecessary copper and procurement cost.
Live Model
Live Spec Data
| Specification | Jinyou published value |
|---|---|
| Cable standard | AS/NZS 5000 |
| Conductor reference | AS/NZS 1125 Cl.5 |
| Rated voltage | The rated voltage is 0.6/1 kV. |
| Nominal cross-section | 0.5–240 mm² |
| Temperature range | The stated temperature range is -40°C to +90°C. |
| Water-immersion test | The published water-immersion test is 3.5 kV for 5 minutes. |
| Roll packing | We offer 100 m or 200 m rolls. |
| Plastic drum packing | We offer 100 m, 500 m or 1000 m plastic drums. |
Buyer approval prompts
- “The label says solar cable, but the project circuit may require a different cable standard.”
- “A long route turns a small cross-section into voltage-drop and energy-loss risk.”
- “Oversizing avoids one concern but can add unnecessary copper and procurement cost.”
The trade-off is copper cost against voltage drop; any size selected without route and load inputs is the wrong choice.
Request a Configuration CheckOrdering, Lead Time and Trade Terms
The price depends on conductor construction, copper content, cross-section, total length, packing format, testing scope and documentation requirements. We return the commercial figure in a written quotation.
Cost and schedule drivers
| Driver | Effect on the order | Best RFQ input |
|---|---|---|
| Copper and cable size | Changes material content and production setup | Nominal cross-section and conductor option |
| Total route length | Sets production quantity and pack split | Required length plus project overage |
| Packing format | Changes handling and site deployment | Roll or plastic-drum preference |
| Destination documents | Changes the quotation scope | Required packing, test and shipping records |
Commercial terms
- Production runs are scheduled at 15–35 days, confirmed with your quotation.
- Payment is accepted by T/T or L/C at sight.
- We ship FOB or CIF; other Incoterms on request.
Lead time starts when the commercial terms and final cable specification are approved. Transit time is quoted separately for the selected destination and Incoterm.
Quality Assurance
Quality Controls for Cable Supply and Installation

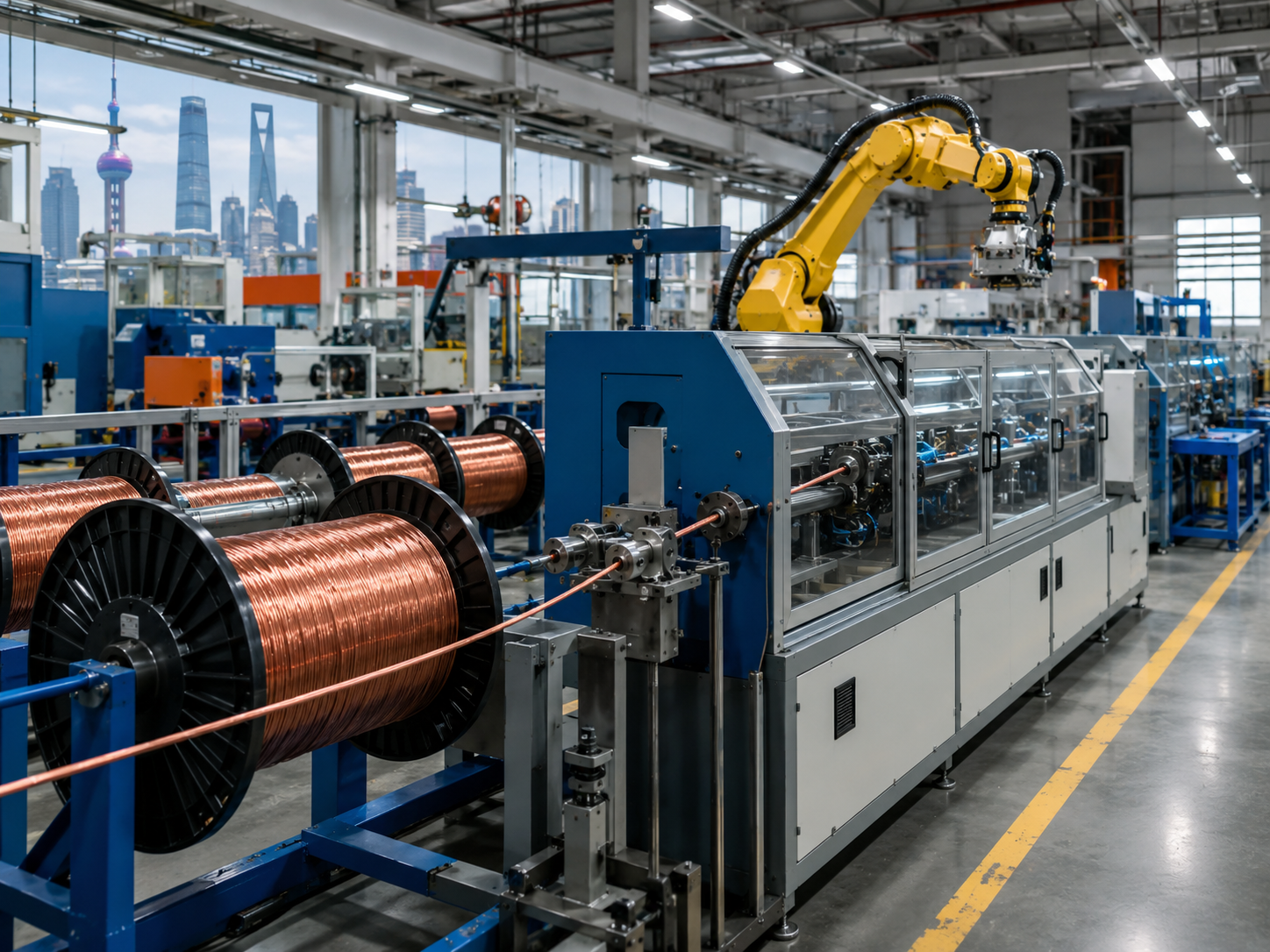

Our Shanghai facility uses automated cable machinery and testing systems to control repeat production. A correctly specified cable can still fail at an incorrectly crimped or torqued connector because the cable, connector and tooling work as one system.
Order control sequence
-
Verify the standard of the circuit and the precisely ordered configuration.
01 -
Lock conductor, cross-section, insulation, sheath, identification and packing.
02 -
Use the approved electrical test and inspection procedure for the production batch.
03 -
Release packing and shipping records against the written quotation.
04

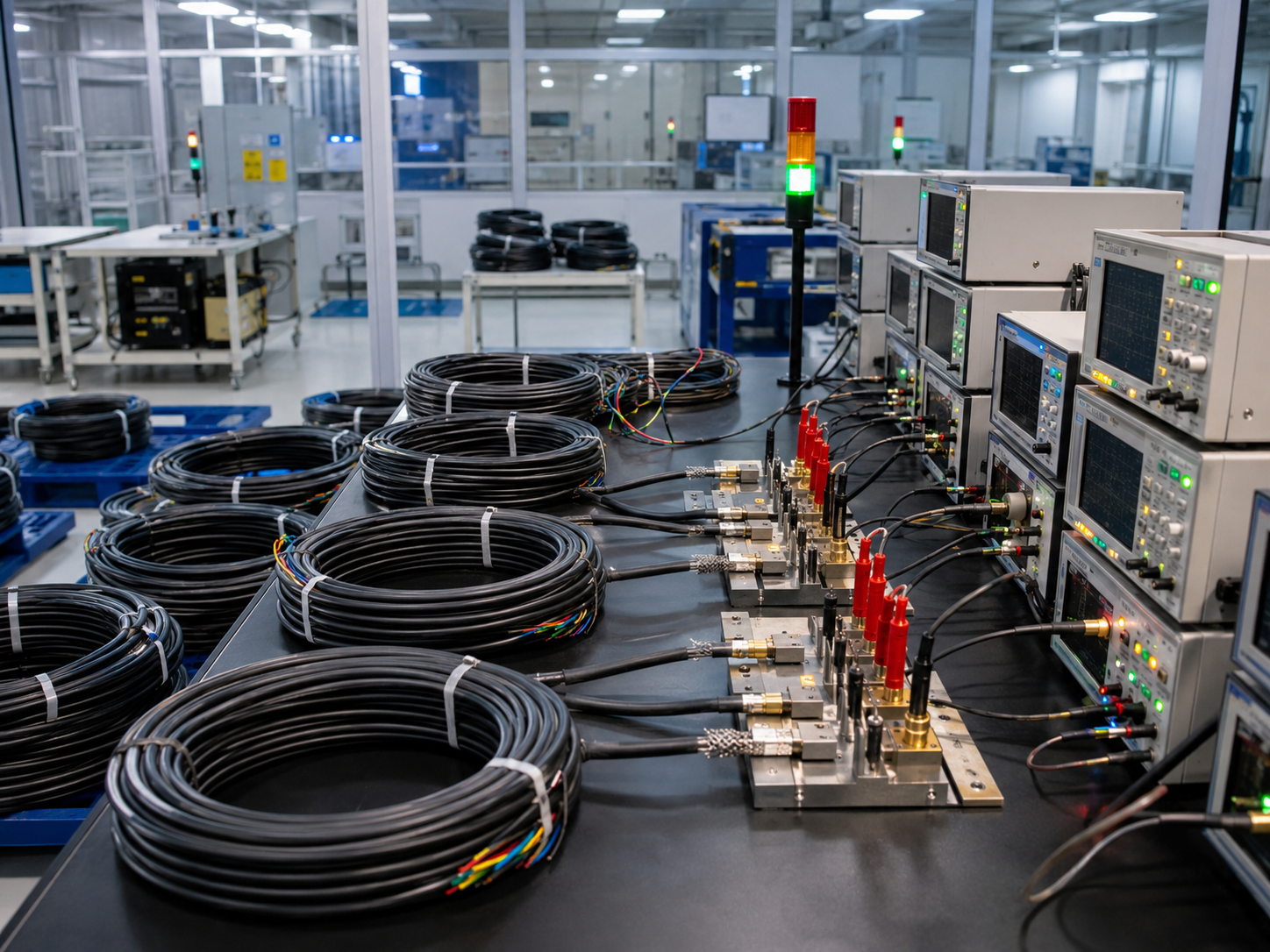

Installation coordination points
- Department of Energy cable-management guidance shows why the 0.6/1 kV product specification is not a substitute for route protection.
- Loose roof cable and failed plastic ties expose cable to abrasion and repeated movement.
- Mis-paired connector or unprotected glands can lead to disconnected wires or entry of dust or water.
- Pair cable, connector and approved crimp tool as a system.
- Keep connector joints outside recurring movement and unsupported zones.
- Protect cable from sharp edges, heat, ultraviolet exposure and unsuitable ties.
- State gland, conduit, support and route conditions in the project method.
- List any required test report, packing record or destination document in the RFQ so it can be included in the quotation scope.
Process

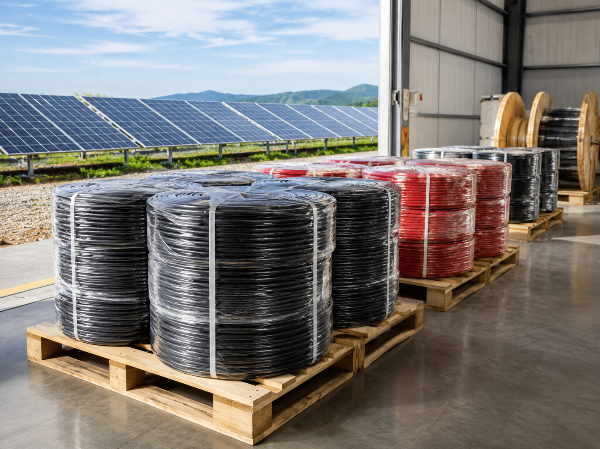

From Cable Schedule to Shipment
Send the circuit brief
Provide circuit location, governing standard, voltage, cable size, route length and quantity.
STEP 01
Review standard fit
We separate AS/NZS 5000 applications from PV-array d.c. requirements that call for an IEC 62930 check.
STEP 02
Lock the construction
Conductor, compounds, identification, packing and documents are written into the order specification.
STEP 03
Issue the quotation
Price, 15–35 day production schedule, payment and Incoterms are confirmed together.
STEP 04
Manufacture and inspect
Production and checks follow the approved configuration and inspection plan.
STEP 05

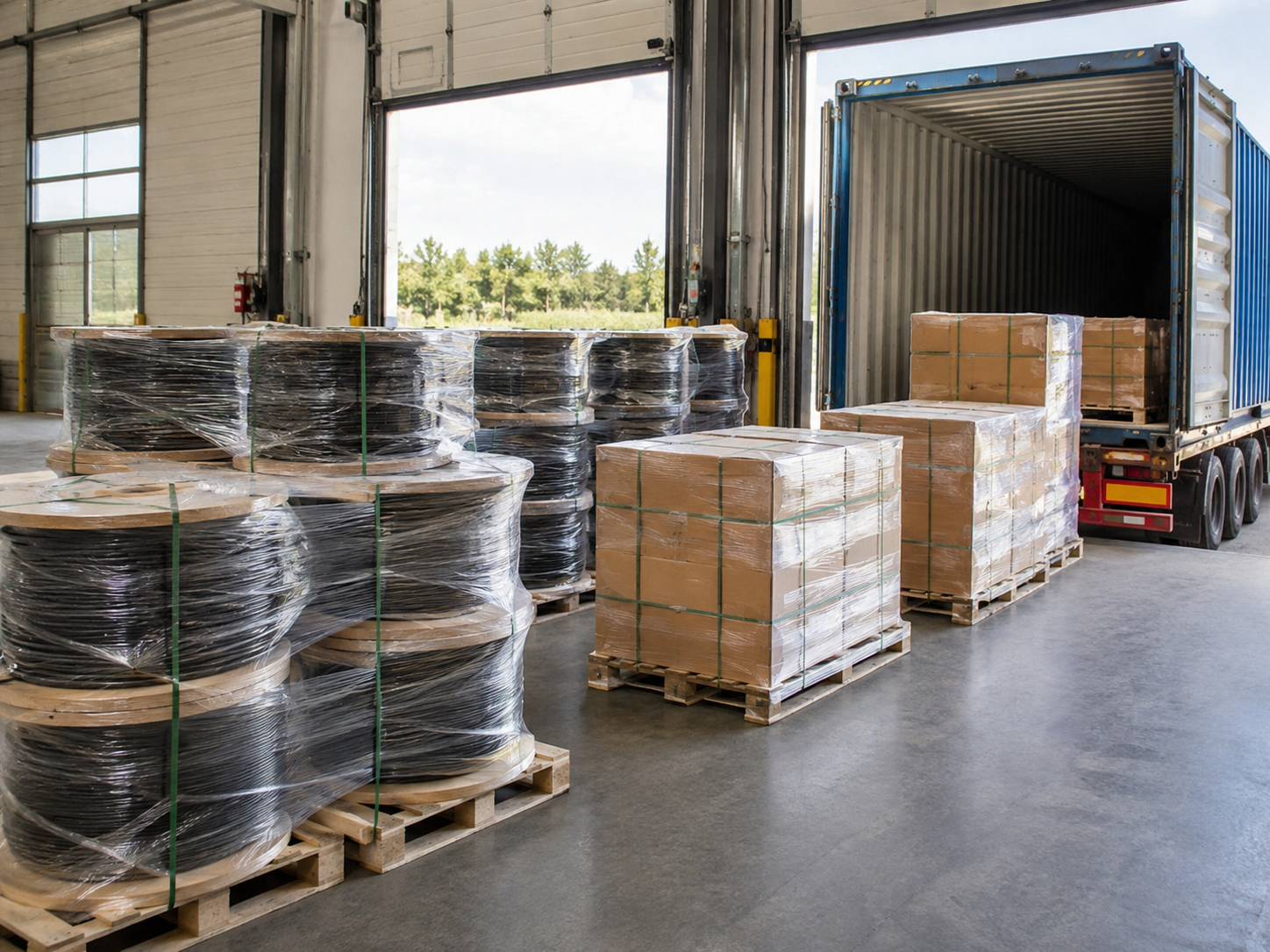

Pack and ship
Finished cable is released in the selected roll or plastic-drum format.
STEP 06
“We lock the governing standard, conductor construction, cable size, packing format and document list before production.”
Specifications
Create a copy-ready RFQ specification brief before opening the quotation form.
Specification inputs that reduce clarification
| Input | What to specify | Decision it unlocks |
|---|---|---|
| Circuit location | PV array, equipment link or distribution circuit | Governing standard route |
| Electrical load | Current, system voltage and voltage-drop limit | Cable size review |
| Installation route | Length, ambient temperature, exposure and support | Construction and protection review |
| Order logistics | Quantity, pack format, destination and documents | Commercial quotation |

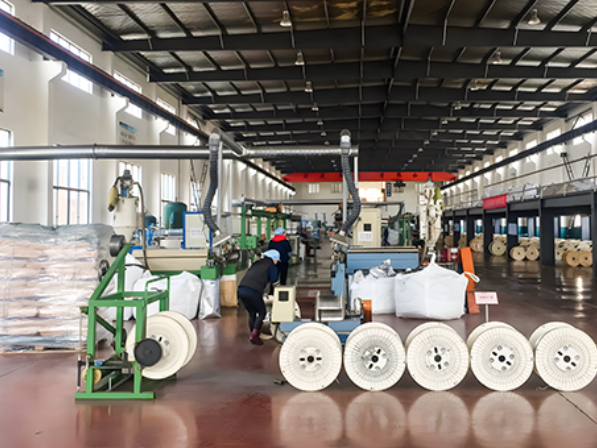

Jinyou Manufacturing and Product Evidence
Jinyou Cable designs and manufactures renewable-energy cable products in Shanghai. The photographs below are first-party assets from the company profile and its exact legacy product pages.
Renewable-energy supply scope
Solar power
Cable solutions for rooftop, commercial and utility project procurement.
Energy storage
Project-specific electrical connections for integrated storage systems.
Electric vehicles
Custom cable supply for vehicle and charging electrical applications.
When This Cable Construction Is Not the Right Fit
The best option to avoid problems will begin with the non-acceptability of any mismatched circuitry or specification at the quotation phase.
Australian Standard Solar Cable Engineering Tools
Cable Quantity and Pack Planner
Optimize your order volume and packaging formats for large-scale solar projects. Ensure efficient site logistics and material handling.
Access ToolCable Size Input Checker
Quickly validate cross-sectional area requirements based on system design current, intended voltage drop, and installation conditions.
Access ToolRFQ Specification Brief Builder
Generate a standardized, copy-ready technical procurement brief to streamline your internal alignment and quotation process.
Access ToolAustralian Standard Solar Cable FAQs
What does AS/NZS 5000 cover?
AS/NZS 5000.1 covers polymeric-insulated single-core and multicore cables up to 0.6/1 (1.2) kV. Special installations or service conditions may be controlled by separate standards.
Can this cable be used for above-ground PV-array d.c. wiring?
Do not approve that circuit from the product name alone. For non-underground PV-array direct-current cable, the project review should check IEC 62930, direct-current suitability, temperature, ultraviolet exposure and mechanical support under the applicable AS/NZS 5033 requirements.
How do I choose between 4 mm² and 6 mm²?
Use design current, route length, permitted voltage drop, ambient temperature and installation method. A larger 6 mm² conductor is not automatically the correct choice for every circuit.
When should I select tinned copper?
Choose bare copper or tinned copper from the project construction and termination requirements. State the conductor option in the RFQ so it can be locked to AS/NZS 1125 Cl.5 and the ordered size.
What temperature range is published?
The stated range is -40°C to +90°C for the published construction. Installation derating and circuit design still follow the project conditions and governing rules.
What packaging is available?
Published formats are 100 m or 200 m rolls and 100 m, 500 m or 1000 m plastic drums. Choose the pack split against site handling and route lengths.
What should I send for a quotation?
Send the circuit location, governing standard, 0.6/1 kV requirement, cross-section, conductor option, total length, pack format, destination and document list. Include current, route and voltage-drop inputs when cable size still needs engineering review.
What are the production and trade terms?
Production is scheduled at 15–35 days. Payment is T/T or L/C at sight, and shipment is FOB or CIF unless another Incoterm is agreed in the quotation.
Can Jinyou supply an OEM cable configuration?
Yes. We review the requested 0.5–240 mm² configuration, construction, marking, packing and project documents before confirming the OEM order.
