BESS Cable
BESS Cable Manufacturer for DC Energy Storage Systems
DC cable specification for stationary energy storage
Develop the cable proposal around the circuit you are building—not just the conductor size. Send the circuit position, voltage configuration, duty, route and acceptance requirements, and JINYOU Cable will return an engineer-reviewed quotation package.
Request a BESS Cable QuoteWithin 24 hours
You receive an engineer-reviewed quotation within 24 hours on business days when the cable schedule is complete.
Confidential project review
Your technical files stay confidential, and an NDA is available on request.
BESS Cable Supply Built Around the DC Circuit
A useful BESS cable proposal starts with a well-defined electrical interface and installation route. By defining bulk cable, pre-terminated assemblies and project-engineering responsibility separately, we reduce scope risk before pricing your enquiry.
DC
Bulk DC power cable
Based on the stated BESS circuit position, duty and installation environment, JINYOU Cable defines the bulk-cable scope. Connectorized or pre-terminated assembly work follows a separate interface review unless the enquiry expressly includes it.
OEM
Project-specific OEM definition
We translate your cable schedule into a proposed construction, marking requirement, length plan, packing scope and document list. Any missing information is clarified before the product configuration is released for order review.
RFQ
Procurement-ready quotation
We reduce project risk by separating the technical selection inputs from the commercial variables. Engineering and procurement can review the same scope, while assumptions remain visible instead of being buried in a generic price per metre.
Circuit-to-Cable Boundary Matrix
| Enquiry description | Commercial route | Required interface detail |
|---|---|---|
| Bulk DC cable by drum or cut length | This BESS cable scope | Endpoints, voltage topology, duty, route, length, marking and acceptance package |
| Pre-terminated lead with lugs or connectors | Cable-assembly review | Mating interface, termination drawing, sealing, pull, crimp and assembly-level acceptance needs |
| Medium-voltage collection or grid-side feeder | Separate power-cable scope | System one-line, voltage class, earthing, protection, route, accessories and applicable utility rules |
| Installation design or cable-sizing approval | Qualified project engineering | Load study, short-circuit study, protection coordination, installation design and authority requirements |
SYS.REQ // 04
“A BESS cable schedule is ready for quotation when the voltage reference, operating duty, route and terminal interface are controlled on the same revision.”
Scope boundary: this page covers bulk BESS power cable supplied against a defined schedule. Site cable sizing, protection coordination, installation approval and final system acceptance remain with the qualified project parties and the applicable authority.

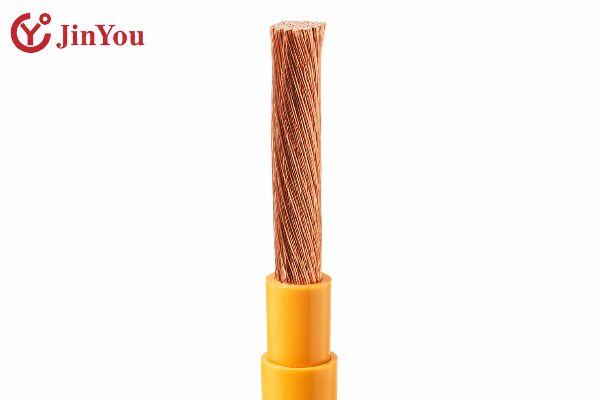

BESS Cable Construction and Voltage Configuration
Voltage ambiguity creates design risk because conductor-to-conductor, conductor-to-earth and earthing conditions can differ behind the same label. For a buyer RFQ, JINYOU Cable checks the supplier declaration against the 1 kV and 3 kV scope of IEC 60502-1:2021; the topology terms are not interchangeable, and the trade-off cannot be resolved from one voltage label.
01
Voltage reference
Clarify the maximum system voltage and its reference points—positive to negative, conductor to neutral, or conductor to earth. Add the circuit earthing arrangement, polarity, transient design assumptions and circuit position on your single-line diagram.
A voltage value without its reference points is not a complete cable requirement.
02
Construction release
Define the conductor requirement, flexibility need, insulation or sheath constraints, fire-performance objective, colour and print legend. JINYOU Cable then records the proposed construction and required verification documents in the quotation package for review before order release.
The proposed construction, declared use and verification documents are fixed against the reviewed circuit.
1kV – 3kV
SYSTEM TOPOLOGY
Eight-Input BESS Cable Specification Gate
A procurement gap creates mismatch risk when current and conductor area leave the route, fault duty or terminal interface unresolved. The U.S. Department of Energy checklist supports early BESS requirements collection, while this eight-input gate does not replace qualified engineering approval.
Show both connection endpoints and the cable’s location on the one-line architecture.
Define the maximum voltage, reference points, polarity and earthing arrangement.
Provide continuous current, expected load profile, duty cycle and charging or discharging conditions.
Provide prospective fault current, protective device and clearing-time assumptions.
Describe ambient temperatures, grouping, enclosure, tray, conduit, burial and ventilation.
Provide individual lengths, routing changes, movement, handling and bend constraints.
Name the equipment entry, lug or connector interface and allowable terminal loading.
Name the installation location, governing rules, required declarations and acceptance records.
| Input completeness | Quotation state | What happens next |
|---|---|---|
| 8 of 8 inputs | Engineer-reviewable | We can assess one controlled technical and commercial scope, subject to resolving any conflicts found during review. |
| 5–7 of 8 inputs | Clarification required | We return a focused question list and identify which construction, rating or document decisions are still open. |
| 0–4 of 8 inputs | Concept definition | We can discuss scope, but we do not present the enquiry as a released product specification. |
The U.S. Department of Energy’s commercial-scale BESS procurement checklist similarly separates early-stage procurement questions from detailed technical specifications and interconnection work.
Electrical and Dimensional Specification Inputs
Use this requirements table to prepare the cable schedule. The quotation then identifies the proposed product values, applicable construction and required verification documents for the reviewed circuit.
| No. | Buyer input | Minimum information to provide | Decision controlled |
|---|---|---|---|
| 01 | Circuit position | Endpoint A, endpoint B and one-line reference | Commercial product boundary and interface responsibility |
| 02 | Voltage configuration | Maximum system voltage, measurement reference, polarity and earthing | Voltage class, insulation coordination and declaration review |
| 03 | Continuous duty | Current, duty cycle, charging and discharging profile | Conductor proposal and steady-state thermal check inputs |
| 04 | Fault and protection duty | Prospective short-circuit current, device type and clearing time | Short-circuit withstand review and protection-interface questions |
| 05 | Installation route | Tray, conduit, enclosure, burial, grouping and ventilation | Thermal assumptions, sheath constraints and installation feasibility |
| 06 | Environmental conditions | Minimum and maximum ambient conditions plus chemical, moisture or UV exposure | Material requirement and environmental qualification scope |
| 07 | Mechanical and terminal interface | Individual length, route changes, entry geometry, lug or connector and terminal constraints | Flexibility, outside-diameter, bend and termination review |
| 08 | Jurisdiction and acceptance package | Country or region, named standard, marking, declarations, inspection and test-document needs | Quoted compliance scope and order deliverables |
Ampacity is not the only check
Cable size is not determined by current alone. Longer routes can make voltage drop decisive even when a conductor remains thermally acceptable, while fault duty and protection data still control short-circuit review.
Larger is not automatically easier
A larger cable is not automatically easier to install. Thick, stiff conductors can create bend-radius and terminal-load problems, while the wrong choice can reduce resistance and still make the equipment interface harder to install safely.
The route changes the answer
Bundling, enclosure, burial, tray arrangement and ambient conditions change heat dissipation. The quotation must identify the route assumptions used for the proposed cable.
BESS Cable Pricing and 24-Hour Quotations
Opaque pricing creates comparison risk because suppliers can use different construction, length, packing and document assumptions. JINYOU Cable returns quotations within 24 hours on business days when the procurement schedule is complete and states every open scope item.
SPEC // 01
Technical price drivers
- Conductor material, cross-section and flexibility requirement
- Insulation and sheath construction selected for the stated environment
- Outside-diameter and handling constraints created by the route
- Marking, colour, print legend and identification requirements
LOGISTICS // 02
Order and logistics drivers
- Total quantity plus each individual cut or drum length
- Packing, drum, labelling and shipment split
- Named inspection, test, declaration and document deliverables
- Destination, delivery terms and schedule requested for the order
PROCUREMENT SPEC // COMPARABLE BIDS
For comparable bids: send every candidate supplier the same revision of the cable schedule, document list and packing plan. A low per-metre figure is not comparable when one quotation excludes the lengths, testing, marking or logistics that another includes.
Quality Control and Acceptance Documents
Document ambiguity increases acceptance risk because a company certificate, manufacturer declaration, inspection record, test report and third-party certificate are not interchangeable. JINYOU Cable defines the acceptance package against the quoted construction and names each requested document before order release.
Standard and edition
We record the named product or test standard and its edition in the quotation review. We flag a requested standard when its product scope, voltage class or jurisdiction does not match the stated circuit.
Document identity
In the document schedule, we distinguish a manufacturer declaration, routine inspection record, test report and third-party certificate. We do not present these document types as equivalent.
Acceptance plan
We agree the required checks, records and review points in the commercial package before production release. Any special witnessing, sampling or external-laboratory requirement belongs in the enquiry.
Quality-plan boundary: ISO 10005:2018 provides guidance for establishing, reviewing, accepting, applying and revising quality plans; it does not itself specify product requirements. The contract still has to name the cable, criteria, responsibility and evidence expected for your order.
Acceptance-package fields
Define the product identifier, schedule revision, applicable criteria, inspection stage, record format and responsible party for each requested document. Add any witness or hold point before commercial release so it can be planned and priced.
For third-party documents, name the expected issuer, scope and validity information. This prevents a broad company certificate from being substituted for evidence tied to the quoted cable.
Change control before production
Use one controlled technical revision across the cable schedule or drawing, quotation and approved clarification record. A change to voltage topology, route, terminal interface, cable length, marking or document scope can change the released product or price.
We surface those changes before production release and align the accepted revision across engineering, procurement and quality contacts.
JINYOU BESS Cable Quotation Workflow
Revision mismatch creates release risk because engineering, procurement and quality can otherwise approve different assumptions. JINYOU Cable keeps the electrical decision, commercial scope and document responsibilities on the same controlled workflow.
Receive
The received package includes the cable schedule, one-line reference, destination and requested delivery scope.
Classify
Scope classification separates bulk cable, a connectorized assembly and other system interfaces.
Review
Engineering review tests the eight electrical, route, mechanical and jurisdiction inputs for conflicts or gaps.
Clarify
A focused question list resolves assumptions that could change construction, price or acceptance scope.
Quote
The quotation names the proposed cable, quantity basis, lengths, marking, packing and document deliverables.
Freeze
The approved commercial and technical revision stays aligned before production release.
Protect
Project files remain confidential, with an NDA available on request.
Handover
Handover organizes the agreed labels, packing and document package for the stated order scope.
What engineering receives
The proposed cable description matches the circuit position, voltage topology, normal and fault-duty assumptions, route, environment and terminal interface. Open points remain visible instead of being buried in a generic product name.
What procurement receives
The quote establishes quantity basis, individual lengths, marking, packing, document deliverables, destination and commercial scope. This gives sourcing a cleaner comparison surface and quality a defined acceptance package.
Check RFQ readiness
Score the completeness of your eight-input enquiry and identify the fields still open.
Use the BESS cable RFQ readiness calculatorCompare quotation scope
Compare two bids across construction, lengths, marking, packing, documents and delivery.
Open the BESS cable quote comparison matrixMap the supply boundary
Route the enquiry to bulk cable, assembly, separate power-cable scope or project engineering.
Map the BESS cable circuit and supply scopeRenewable-Energy Cable Experience Since 2006
JINYOU Cable was established in 2006 and is based in Shanghai, China. The company designs, manufactures and supplies cable solutions for renewable-energy applications, including solar power, energy storage and electric mobility.
01
Trust signals that belong in the RFQ
- One legal supplier identity and quotation revision
- One agreed product description tied to the cable schedule
- Named standards with edition and product scope
- Document deliverables listed before order release
- Confidential handling and NDA availability on request
02
Core cable capabilities
We design cable solutions for renewable-energy systems; we manufacture cable solutions for renewable-energy applications; we supply OEM cable programs for standard and specialized installation needs; and we customize the proposed cable around partner and project requirements.
03
Application coverage
We serve solar-power cable applications; we serve stationary energy-storage cable applications; and we serve electric-mobility cable applications.
SYS-VISUAL // REF-01
SYS-REQ // OEM
OEM SCOPE // PROJECT REQUIREMENTS
Our OEM scope is built around project requirements rather than a single stock description. For this BESS cable page, the buyer’s schedule controls the proposed circuit position, construction, length plan, marking and acceptance package.

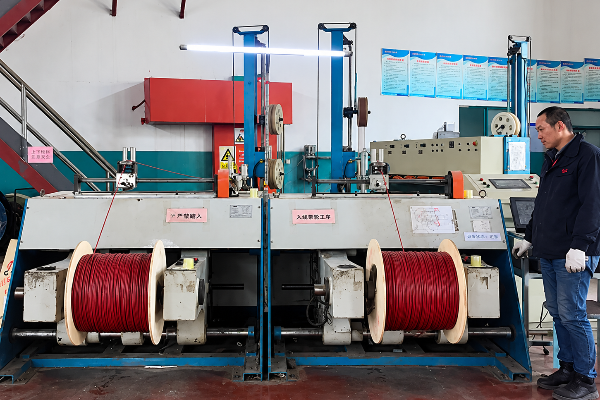

Bulk Cable, Pre-Terminated Assemblies and System-Side Boundaries
The wrong supply route creates responsibility gaps among the buyer, cable supplier and system integrator. JINYOU Cable separates bulk cable, pre-terminated assemblies and project engineering so the chosen deliverable matches its electrical and mechanical interface.
This BESS cable page
Use this scope for bulk DC power cable defined by conductor, construction, length, marking, packing and acceptance requirements.
Connectorized assembly scope
Use the assembly route when the deliverable includes connectors, lugs, seals, branches, crimping or a pre-terminated assembly with interface-level acceptance.
Send Your BESS Cable Requirements
Complete the eight-input schedule and attach the single-line reference. JINYOU Cable will review the circuit position, voltage topology, duty, route, terminal interface and acceptance scope before returning the commercial proposal.
Your technical files are kept confidential; an NDA is available on request.
Why can’t a BESS cable be selected from current and conductor area alone?
Current and conductor area get you only part of the way. A thermally acceptable conductor may still miss the voltage-drop target on a long circuit or lack the required short-circuit withstand for the declared protective-device clearing time. Grouping, containment, ambient conditions and duty affect heat dissipation.
Insulation review must address the earthing arrangement and conductor-to-earth voltage. Whether an electrical choice can be installed depends on terminal geometry and bend space, so the proposal must reconcile duty, topology, route and equipment interface on one controlled revision.
Can a larger conductor create installation or termination problems?
Yes. Lower resistance can require a larger diameter, greater stiffness, more bend space and higher terminal force, so the electrical margin still has to fit the equipment interface.
What information is required for a quotation?
Provide the circuit endpoints, maximum voltage and its reference points, earthing arrangement, continuous duty, fault and protection data, route and thermal environment, individual lengths, terminal interface, destination, governing standards, marking, packing and acceptance-document requirements.
Can JINYOU quote a 1500 V BESS cable request?
We can review the enquiry, but the voltage label alone is not enough to release a cable proposal. State the conductor-to-conductor and conductor-to-earth conditions, earthing arrangement, circuit position, applicable product standard and any required manufacturer declaration so the quotation can bind the proposed construction to the actual system.
Which factors change the BESS cable price?
Price follows the released construction, quantity, individual lengths, marking, packing, documents, destination and delivery scope.
Which quality documents can be supplied?
List the documents your project requires in the enquiry. We will identify the included manufacturer declarations, inspection or test records and any requested external evidence in the quotation instead of presenting a one-size-fits-all document pack.
How quickly will JINYOU respond?
We return engineer-reviewed quotations within 24 hours on business days when the schedule is complete. Material scope changes trigger a clarification first.
