EV High Voltage Cable for Automotive Power Systems

Jinyou Cable supplies a published shielded EV cable construction for vehicle main power circuits, with copper conductors, two insulation and sheath material paths, and braid-plus-foil shielding. Use the model data below to establish a starting point, then submit the current, route and acceptance requirements that decide project fit.

1000 V AC / 1500 V DC published rating
XLPO or silicone material path
Tinned-copper braid plus foil
OEM specification review

Send Your EV HV Cable Requirements

Include the electrical load, route, ambient conditions, shield concept and target documents so the enquiry can be reviewed against one requirement set.

Engineered For High Performance

1000V AC / 1500V DC

Published Rating

XLPO / Silicone

Premium Material Path

Braid + Foil

Advanced Shielding

OEM Compliant

Specification Review

EV High Voltage Cable Applications and Selection Boundary

We publish EVYJ(P2)YJ-C for main power circuits of electric vehicles. The reference construction is relevant to high-voltage links where a buyer is defining a battery, power-distribution, inverter or motor route, but the route name alone does not select the conductor or prove installed performance.

Electrical definition

Start with maximum working voltage, continuous current, peak current and peak duration; a voltage label does not provide a usable current rating for every installation. Current selection needs the ambient temperature, bundle and duty conditions. Battery cables on stable DC routes and motor cables on PWM routes can present different thermal and shielding questions.

Mechanical route

A cable route has to account for bend radius, vibration and abrasion. State the route length, available envelope, fluid exposure and connector interfaces so the automotive high voltage cable decision stays tied to the vehicle rather than to a generic size chart.

EMC context

Identify PWM motor paths, nearby data or sensor circuits, frequency concerns and the planned shield termination. Shield construction is an input to validation, not a substitute for the installed-system test.

Acceptance evidence

Name the required standard edition, drawing, test schedule, sample plan, marking and delivery records. A buyer should distinguish the product description from the evidence needed to release a particular cable specification.

The selection boundary: a 400 V or 800 V vehicle architecture does not automatically approve a cable merely because its published DC rating is higher. Thermal loading, routing, interfaces and the project acceptance plan remain open decisions.

We design and manufacture custom OEM cables for project-specific requirements. We can review a customer-required wire structure against the project specification.

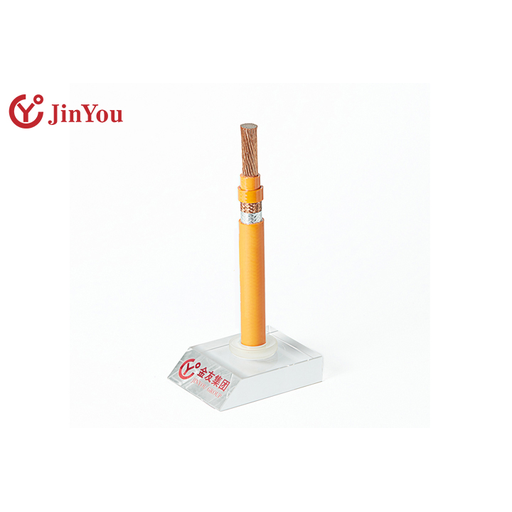

EVYJ(P2)YJ-C Construction Options

The published model is built as a layered automotive cable rather than a single insulation-only wire. Material selection should be written into the project specification so conductor, insulation, shield and sheath are reviewed as one construction.

1 · Conductor

Stranded soft bare copper

2 · Insulation

XLPO or silicone rubber

3 · Braid

Tinned copper

4 · Foil

Aluminium overlap layer

5 · Sheath

XLPO or silicone rubber

Copper Conductor

We use multi-stranded soft bare copper wires in the published conductor construction. Our published conductor constructions use nominal individual-wire diameters of 0.21 mm, 0.26 mm, 0.31 mm and 0.33 mm.

Insulation Path

We publish XLPO or silicone rubber as insulation options. The enquiry should name the temperature metric, fluid exposure, abrasion condition and validation standard rather than choose a polymer from one property alone.

Shield Path

The reference model combines a tinned-copper braid with an aluminium-foil layer. Termination, connector design and route-level EMC validation are outside what a construction percentage can prove.

Sheath Path

We publish XLPO or silicone rubber as sheath options. Final material selection belongs in the written specification with marking, colour, environmental exposure and test requirements.

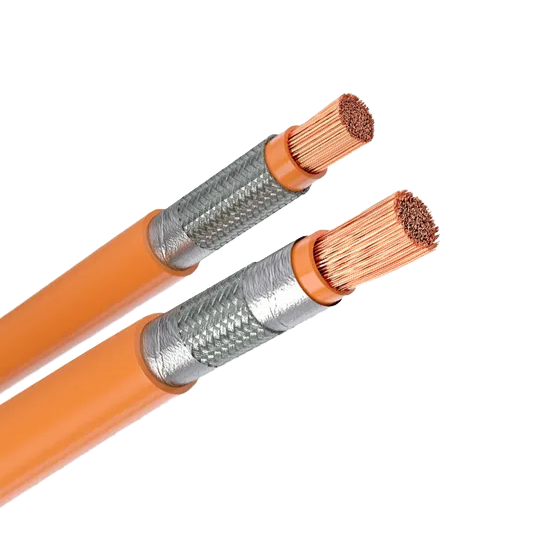

EV HV Cable Requirement-to-Construction Matrix

This matrix is the handoff between a vehicle requirement and the published Jinyou construction. It does not calculate ampacity, predict shielding effectiveness or issue an approval; it shows which input must be settled before a construction can be reviewed.

EV-HV MATRIX / v1.0

EV HV Cable Requirement-to-Construction Matrix

Buyer requirement	Published starting point	Project evidence still needed
Working voltage	We publish a 1000 V AC rating for EVYJ(P2)YJ-C. We publish a 1500 V DC rating for EVYJ(P2)YJ-C.	Maximum operating and transient conditions, target standard and insulation coordination.
Current and heat	Copper conductor constructions are listed by nominal cross-section and DC resistance.	Continuous current, peak profile, ambient, bundle, cooling and allowable temperature rise.
Insulation and sheath	XLPO or silicone rubber paths are published.	Temperature metric, fluids, abrasion, outgassing constraints and requested test method.
Shield construction	We publish tinned copper braid coverage above 85%. We publish aluminium foil overlap above 20%.	Noise source, frequency range, termination, connector interface and vehicle-level EMC acceptance test.
Routing	Fine-stranded conductor and layered construction.	Length, envelope, bend requirement, vibration, clips, edge protection and service movement.
Release documents	Published model and dimensional table.	Drawing, agreed standard edition, sample plan, test report scope, marking and traceability fields.

“Start with the circuit and validation requirement, not the jacket colour. A braid and foil construction tells you how the cable is built; the project test plan tells you whether the installed system meets its EMC target.”

Jinyou Cable Engineering Team

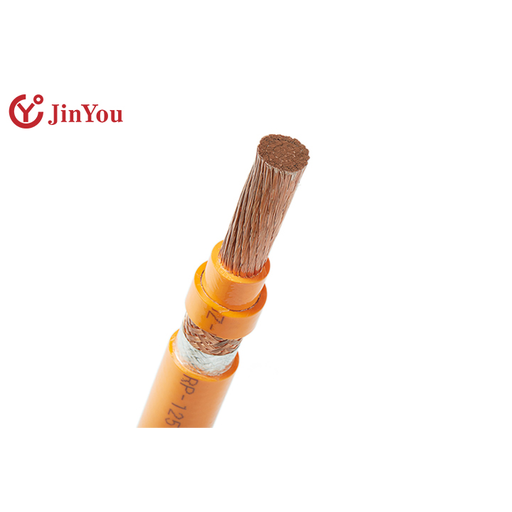

Published EVYJ(P2)YJ-C Model Data

Our published EVYJ(P2)YJ-C table spans 1.5 mm² to 120 mm². We publish DC resistance at 20°C for each listed conductor construction. The rows below reproduce the exact model page’s conductor and finished-diameter data; the chosen row still needs project confirmation before it becomes an order specification.

Nominal area	Conductor construction	Max. conductor diameter	Max. DC resistance at 20°C	Published overall diameter
1.5 mm²	19 / 0.33 mm	1.80 mm	12.7 mΩ/m	4.9–5.3 mm
2.5 mm²	50 / 0.26 mm	2.20 mm	7.60 mΩ/m	5.5–6.1 mm
4 mm²	56 / 0.31 mm	2.80 mm	4.71 mΩ/m	6.6–7.2 mm
6 mm²	84 / 0.31 mm	3.40 mm	3.14 mΩ/m	7.2–7.8 mm
10 mm²	322 / 0.21 mm	4.50 mm	1.82 mΩ/m	9.1–9.7 mm
16 mm²	512 / 0.21 mm	6.30 mm	1.16 mΩ/m	11.1–11.7 mm
25 mm²	798 / 0.21 mm	7.80 mm	0.743 mΩ/m	13.4–14.0 mm
35 mm²	1128 / 0.21 mm	9.00 mm	0.527 mΩ/m	14.8–15.4 mm
50 mm²	1615 / 0.21 mm	10.50 mm	0.368 mΩ/m	16.7–17.5 mm
70 mm²	2294 / 0.21 mm	12.50 mm	0.259 mΩ/m	18.9–19.7 mm
95 mm²	3034 / 0.21 mm	14.80 mm	0.196 mΩ/m	21.6–22.4 mm
120 mm²	3774 / 0.21 mm	16.50 mm	0.153 mΩ/m	23.3–24.1 mm

This table does not provide current capacity or minimum bend radius. Those values require a defined construction, thermal condition and acceptance method.

Prepare a Reviewable EV HV Cable Quote

Custom EV cable price follows the agreed conductor cross-section, copper construction, insulation and sheath system, shield, cut length, marking, quantity and documentation. Jinyou confirms availability, quotation validity and schedule in the written project response; this page does not publish a fixed price, MOQ or lead-time promise.

Voltage and current profile

Why it changes the review

Defines the electrical and thermal problem instead of relying on a platform label.

Useful format

Working voltage, continuous current, peak current and duration.

Route and environment

Why it changes the review

Exposes length, packaging, bend, vibration, abrasion, fluid and ambient constraints.

Useful format

Route drawing, 3D envelope or dimensioned sketch.

Construction preference

Why it changes the review

Separates material and shield choices from their required acceptance evidence.

Useful format

XLPO or silicone preference, conductor area, shield and termination note.

Interface definition

Why it changes the review

Keeps finished diameter and conductor construction aligned with seals, terminals and connectors.

Useful format

Connector drawing, terminal specification or vehicle cable interface control document.

Validation and records

Why it changes the review

Prevents a published product description from being mistaken for project release evidence.

Useful format

Standard edition, sample quantity, test list, marking and traceability fields.

Commercial scope

Why it changes the review

Gives the quote a shared quantity, delivery destination and packaging basis.

Useful format

Annual and release quantities, cut lengths, packaging and destination.

Requirement and Acceptance Boundaries

Procurement risk arises because model data, test methods and installed-system evidence answer different questions. Jinyou Cable publishes the product starting point; the buyer still sets acceptance criteria under the named ISO or vehicle specification. ISO 19642 separates cable vocabulary, test methods and product requirements across different parts of the series.

Keep the evidence layers separate. The honest distinction is that a published construction is not a test report. Unlike a generic “1500 V” filter, this page separates the model row from project evidence.

Published product evidence

Model, application, rated voltage, construction and dimensional rows from the exact Jinyou product page can support the first specification discussion.

Project acceptance evidence

The buyer should identify the required edition, sample, electrical, mechanical, environmental and EMC tests, plus the report fields needed for approval.

Installed-system evidence

Vehicle routing, connector termination, thermal load and EMC behaviour belong to the cable path as installed. They cannot be inferred from a braid or foil percentage.

Jinyou Cable describes its Shanghai factory as equipped for automated production and testing. That factory context supports custom OEM review; it does not prove a particular project test, certificate or product release.

Document the metric, not just the word. “Temperature rating,” “shielding” and “flexibility” are incomplete acceptance criteria until the test method, condition and pass/fail boundary are named.

❮

❯

How We Work: Specification Review Path

This is the buyer-facing path from an open requirement to a reviewable cable specification. It describes the information exchange, not an unverified promise about internal production timing.

Define the circuit

by recording the voltage, continuous and peak current, peak duration, route and interfaces.

Define the environment.

Add ambient temperature, bundle, cooling, vibration, abrasion, fluids and service movement.

Choose a starting construction.

Reference an EVYJ(P2)YJ-C row or submit the required conductor, insulation, shield and sheath.

Set the acceptance plan.

Name the standards, edition, tests, samples, reports, marking and traceability fields.

Align the commercial basis.

State quantity, cut length, packaging and delivery destination for one comparable quote.

Release only the agreed specification.

Treat the confirmed drawing and written acceptance criteria as the order boundary.

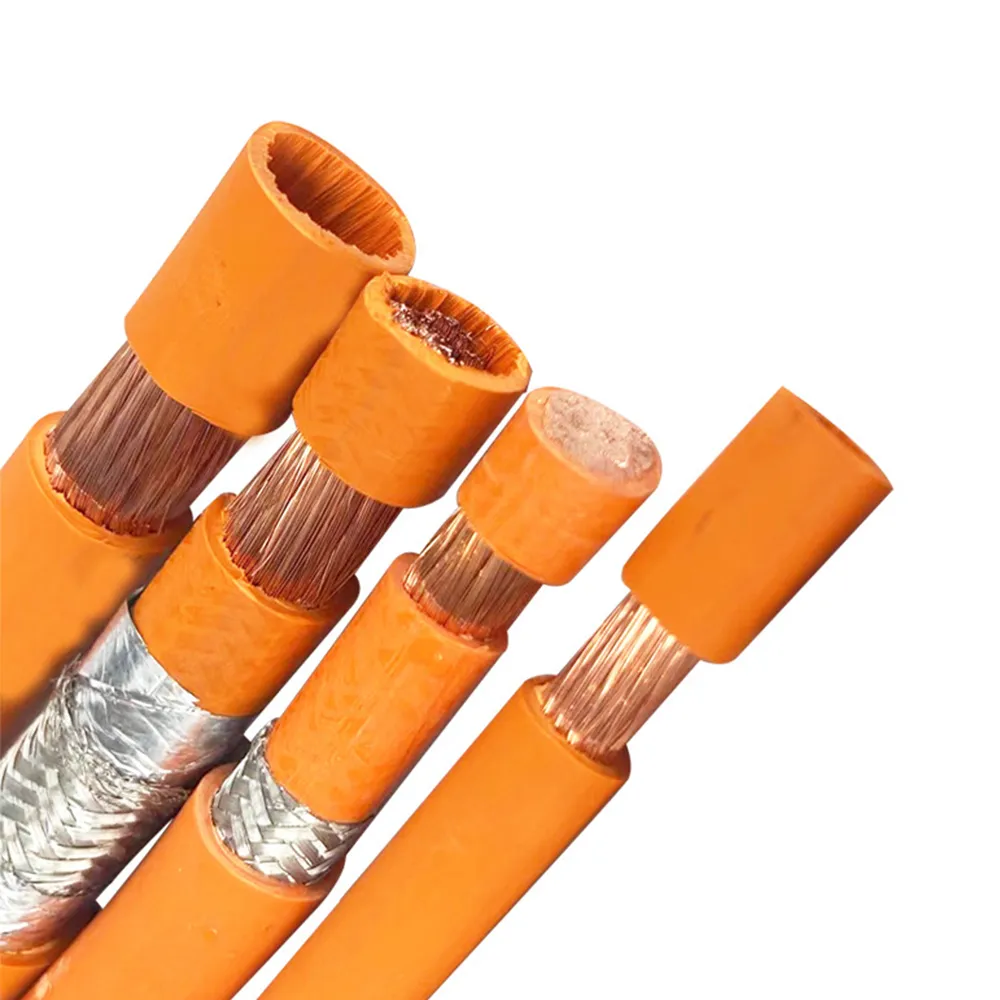

Where a Published Cable Rating Is Not Enough

A wrong assumption can expose an 800 V vehicle programme to a cable mismatch. A published EV HV cable row is a useful starting point, but it should not be stretched into an answer it does not contain. The alternatives below keep the decision moving without inventing a value.

A higher voltage label is not a substitute for thermal selection, and XLPO and silicone are not interchangeable by name alone. More braid coverage buys you a stated construction percentage, not vehicle-level EMC proof. Where to look instead: the route, connector, termination and test plan.

Where a Published Cable Rating Is Not Enough - EV High-Voltage Cable

Situation	Why the published row is insufficient	Next action
Current profile is missing	Voltage and conductor area do not establish temperature rise for an unknown duty and route.	Provide continuous current, peak current, duration, ambient, bundle and cooling data.
Only braid coverage is specified	Coverage describes construction, while installed EMC also depends on frequency, termination, connectors and routing.	Use the shielding brief and name the vehicle-level acceptance method.
The route is an external charging lead	In-vehicle HV cable and EV charging cable face different handling, interface and standards questions.	Move the enquiry to the charging-cable family and state AC/DC charging use.
A temperature class is copied from an old page	A label without a current datasheet, standard edition and test metric can create a false equivalence.	Submit the required temperature metric and request current project evidence.

EV High-Voltage Cable Engineering & RFQ Tools

// TOOL_01

EV HV Cable RFQ Completeness Checker

Fill in what your team already knows. The checker identifies open inputs and builds a copy-ready brief without estimating conductor size, current capacity, price or delivery time.

Access Tool →

// TOOL_02

In-Vehicle vs EV Charging Cable Guide

Use the physical route to identify the product-family conversation. This guide prevents an external charging lead from being mixed into an in-vehicle high-voltage cable RFQ.

View Guide →

// TOOL_03

EV HV Cable Shielding Requirement Brief

Capture the system context that a braid or foil percentage cannot answer. The generator formats your inputs for review without predicting shielding effectiveness.

Access Brief →

EV High-Voltage Cable FAQs

What is the published voltage rating of EVYJ(P2)YJ-C?

Jinyou’s exact model page publishes 1000 V AC and 1500 V DC. Those values are product ratings, not a complete vehicle-system approval or a substitute for the project’s insulation-coordination review.

Does a 1500 V DC rating select the cable for an 800 V vehicle?

No. It establishes one voltage boundary, while current, duty, temperature, routing, bend, interfaces, shielding and the acceptance plan still have to be checked for the vehicle.

Which conductor sizes are shown on the Jinyou model page?

The published table spans 1.5 mm² through 120 mm². Each row has its own strand construction, maximum conductor diameter, DC resistance at 20°C and finished-diameter band.

Does the page provide an ampacity table?

No. A current answer requires the selected construction plus the continuous and peak profile, ambient temperature, bundle, cooling and allowable temperature-rise method.

Do braid coverage and foil overlap prove EMC performance?

No. The published values—braid above 85% and foil overlap above 20%—describe construction. EMC evidence must address the full cable path, terminations, connectors, frequency context and test method.

Can XLPO and silicone be treated as interchangeable?

No. Both are published options, but the project must name the relevant thermal, chemical, abrasion, routing and validation conditions before material selection.

Is EV high-voltage cable the same as EV charging cable?

No. This page addresses an in-vehicle main-power cable model. Jinyou lists external EV charging cables as a separate product family with a different application and specification path.

Which ISO document is relevant to screened copper automotive cable?

ISO 19642-9:2019 covers screened or unscreened copper-conductor road-vehicle cables in voltage groups that include 1000 V AC and 1500 V DC. Citing its scope does not claim that this model has passed every ISO test.

What should an RFQ contain?

Send the voltage, continuous and peak current, peak duration, route, ambient and bundle conditions, conductor preference, shield and termination concept, connector interfaces, quantity, cut length and acceptance documents.

Can Jinyou review a custom wire structure?

Yes. The exact model page permits a customer-required wire structure, and the project still needs a written specification review to confirm the feasible construction and acceptance evidence.
